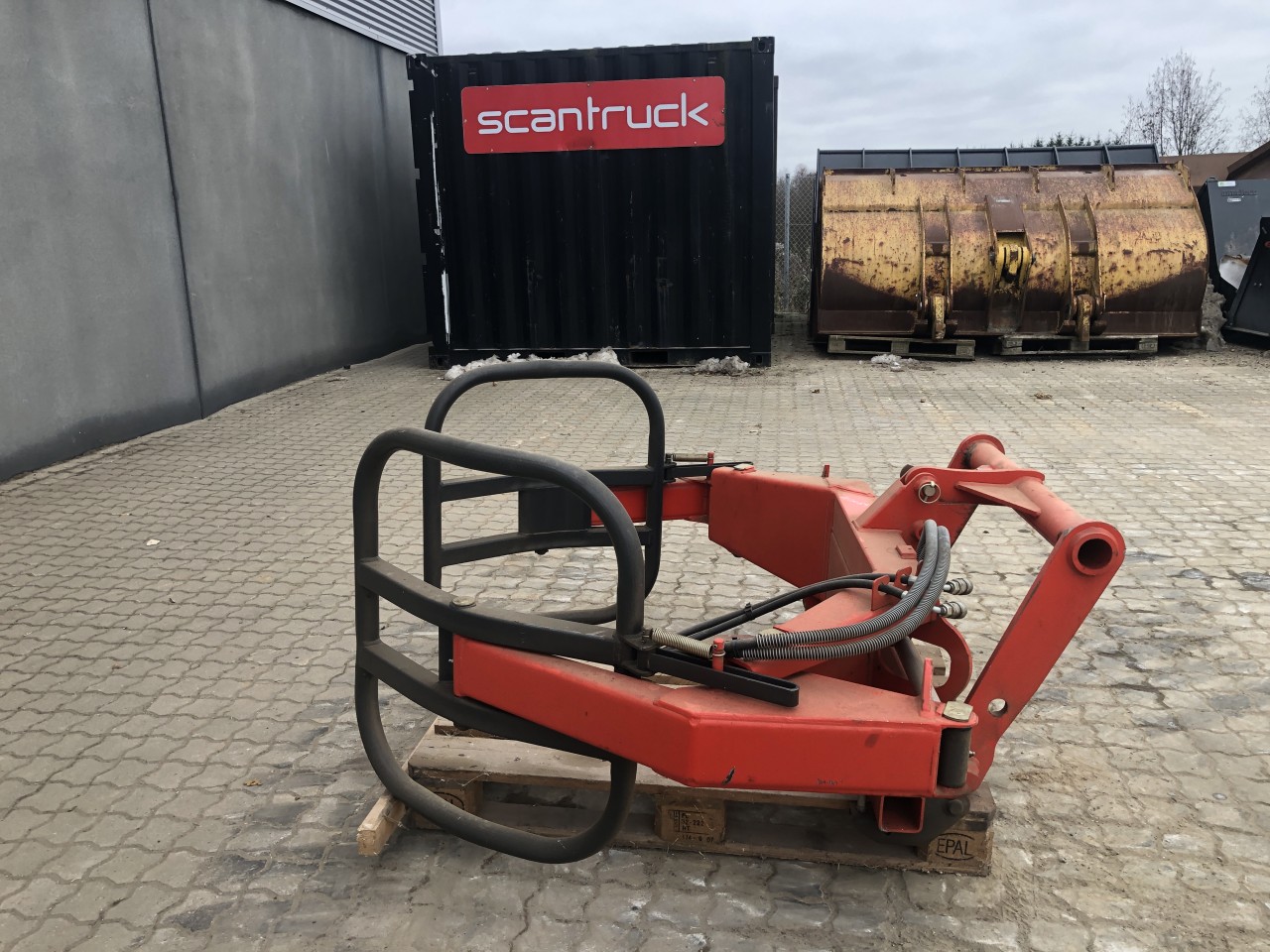

Square Bale Clamp CLBS 2X7 L21

The square bale clamp supports bale handling in agricultural work

This square bale clamp is built for handling and moving square bales in daily agricultural operations. It has a rated capacity of 2,100 kg for 5 bales. The attachment is relevant where loading, stacking and internal transport form part of the workflow.

The frame width is 1,800 mm and the overall height is 3,010 mm. The attachment weight is 760 kg. These values are useful when assessing machine matching, storage space and handling conditions around yards, sheds and field access areas.

The tine layout is designed for controlled bale retention

The clamp is equipped with 2 x 7 side tines. Each side tine measures Ø25 x 340 mm. This arrangement supports grip on the bale sides during lifting and movement.

The bottom section has 3 tines with dimensions of Ø40 x 1000 mm. These bottom tines support the load from below and help keep the bale group aligned during transport. This is relevant when bales are moved between storage areas or loaded for onward handling.

Synchronized closing helps maintain even pressure across the load

Synchronized closing is an important functional feature on this bale clamp. It helps both sides close evenly around the bale stack. Even movement across the frame supports stable retention and reduces uneven pressure during clamping.

This function is relevant when several square bales must be lifted in one cycle. It supports predictable handling when the operator works in repetitive loading tasks. That can help maintain a steady process during feeding, stacking or trailer loading.

The attachment suits operations where bale flow must remain consistent

For farms and contractors handling square bales, this clamp provides key data for an initial assessment. The 2,100 kg capacity, synchronized closing and defined tine layout describe its intended use clearly. It is suited to bale handling where grip, support and controlled movement are required throughout the task.
