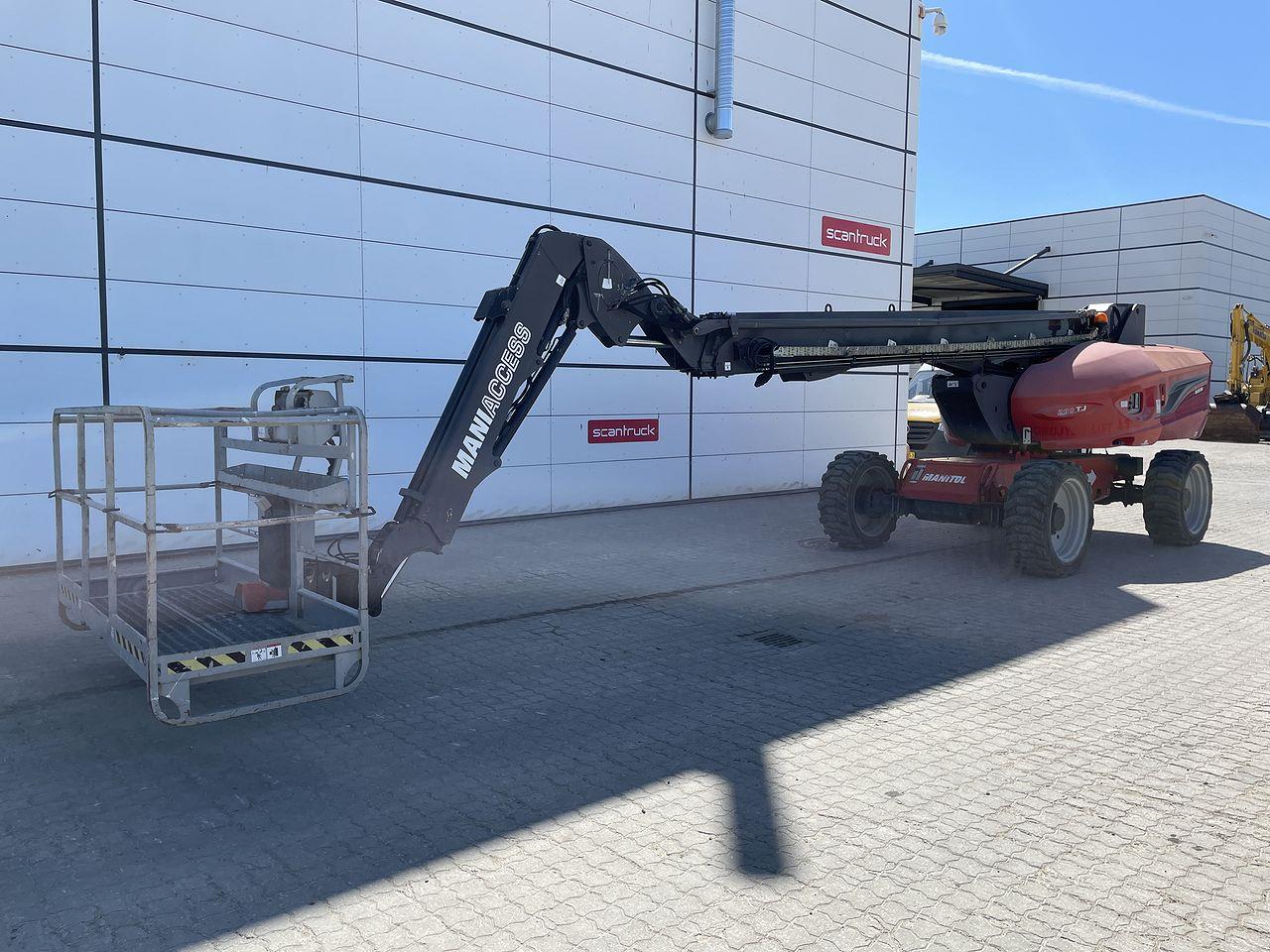

Manitou 160ATJ RC 4RD ST5

Working height (mm)

16,020

Platform height (mm)

14,020

Outlay (mm)

8,300

Lifting capacity (kg)

230

Engine

Kubota/D1105-E4B ST5

Platform width (mm)

1,800

Platform length (mm)

800

Rotation chassis (degrees)

350

Weight (kg)

6,118

Construction height (mm)

2,370

Length (mm)

4,440

Width (mm)

2,320

Lifting capacity (kg)

230

Steering

4 wheel steering

Electric equipment

230 V European type electric plug with differential circuit breaker

Engine / transmission

Stop and go

Wheel / undercarriage

Oscillating axle

Light equipment

Rotating beacon

Security

Secondary Protection System (SPS) with red flashing light

Other equipment

Kontinuerlig Rotation

Other equipment

Easy link
Galvanized platform 1m80

Transmission

Hydrostatic 4wd

Engine brand

Kubota

Engine type

D1105-E4B ST5

Engine fuel type

Diesel

Engine (hk)

24

Wheel front type

Foam filled tyres 840 x 295 mm

Wheel rear type

Foam filled tyres 840 x 295 mm

Platform height (mm)

14,020

Outlay (mm)

8,300

Outlay height (mm)

7,380

Rotation chassis (degrees)

350

Rotation basket (degrees)

180

Tilt jib (degrees)

119

Platform width (mm)

1,800

Platform length (mm)

800

Wheelbase (mm)

2,200

Free height (mm)

360

Driving speed (km/h)

5

Gradeability (%)

45

Permissible leveling (degrees)

5

Working height (mm)

16,020

Engine

Kubota/D1105-E4B ST5
