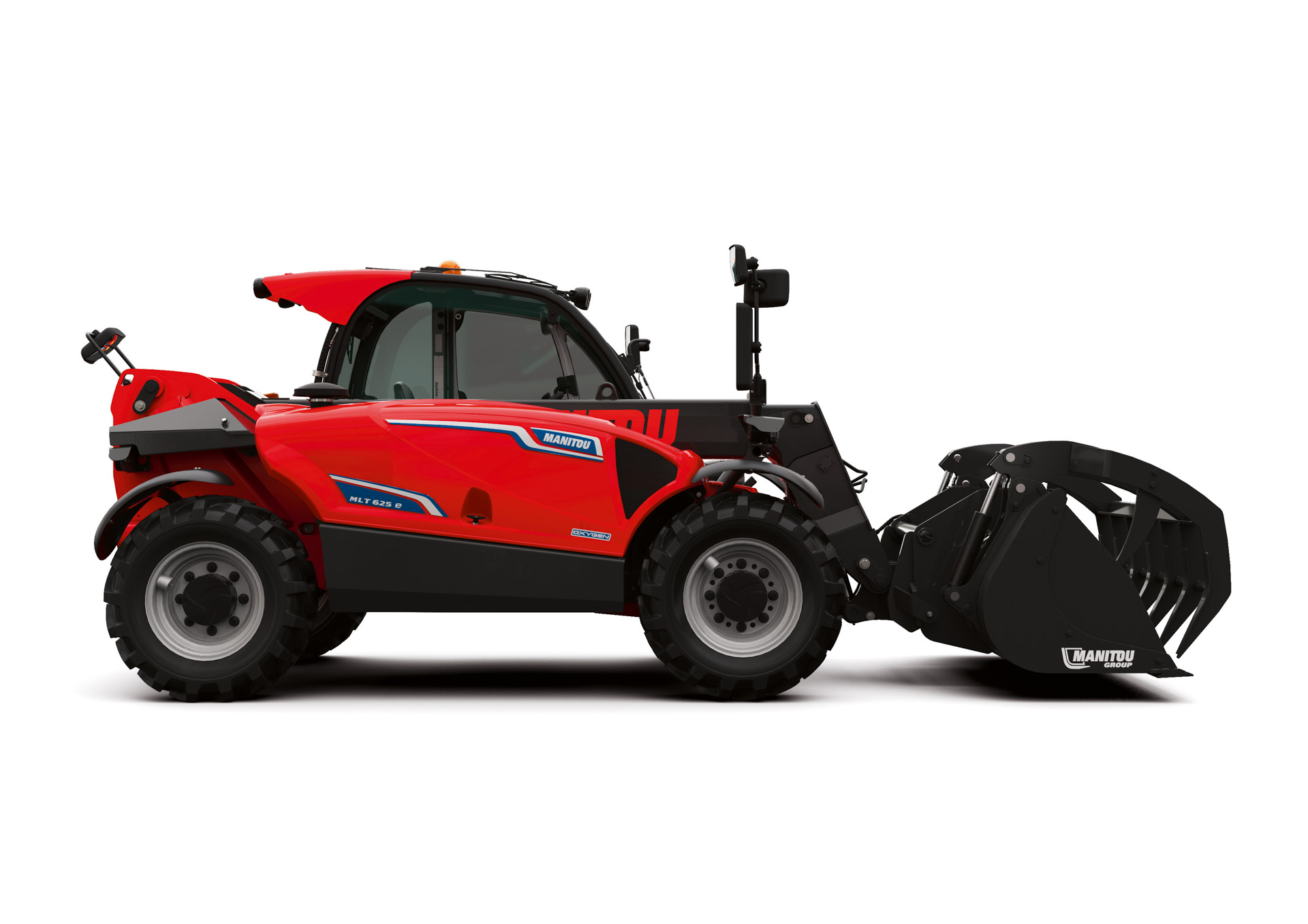

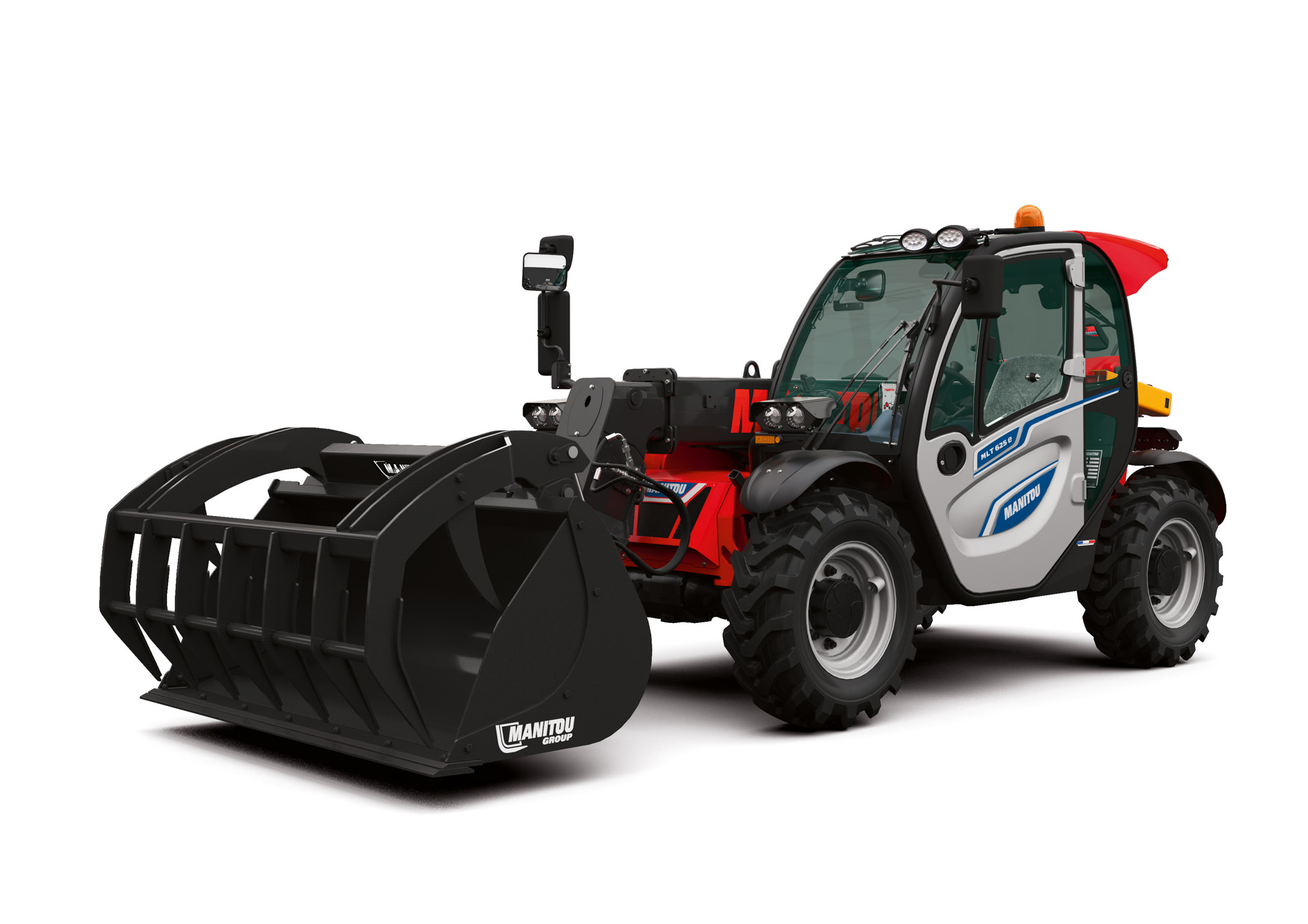

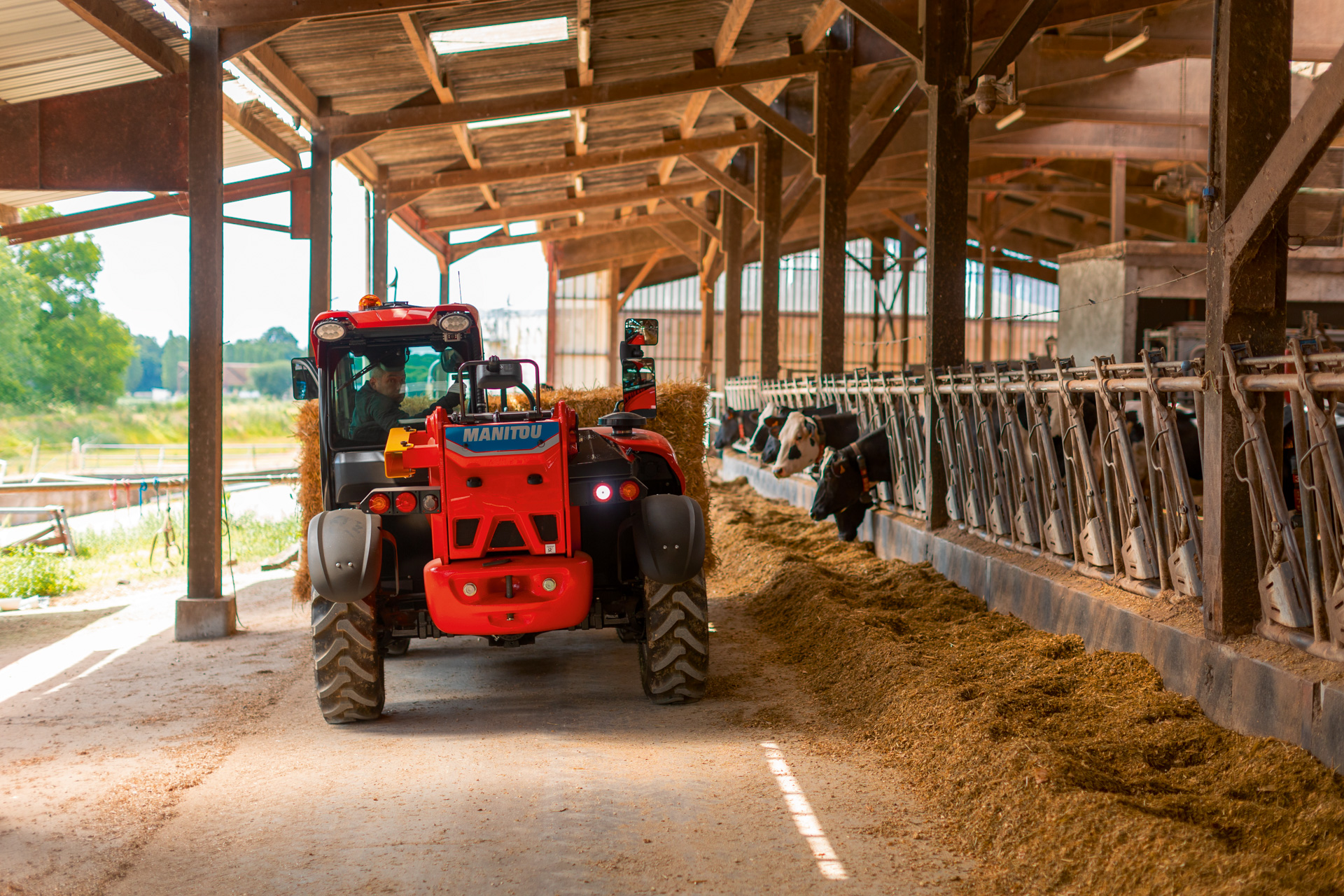

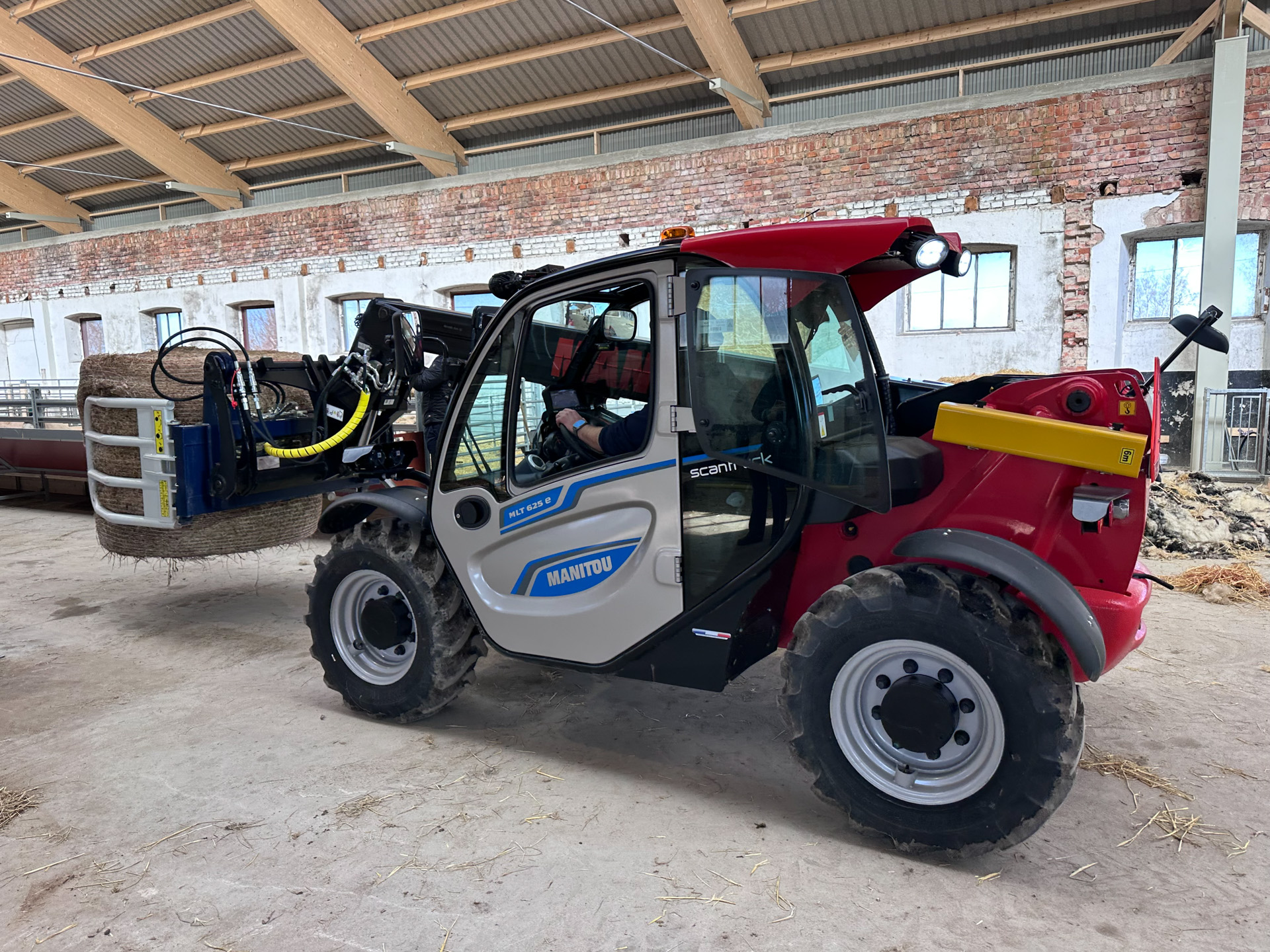

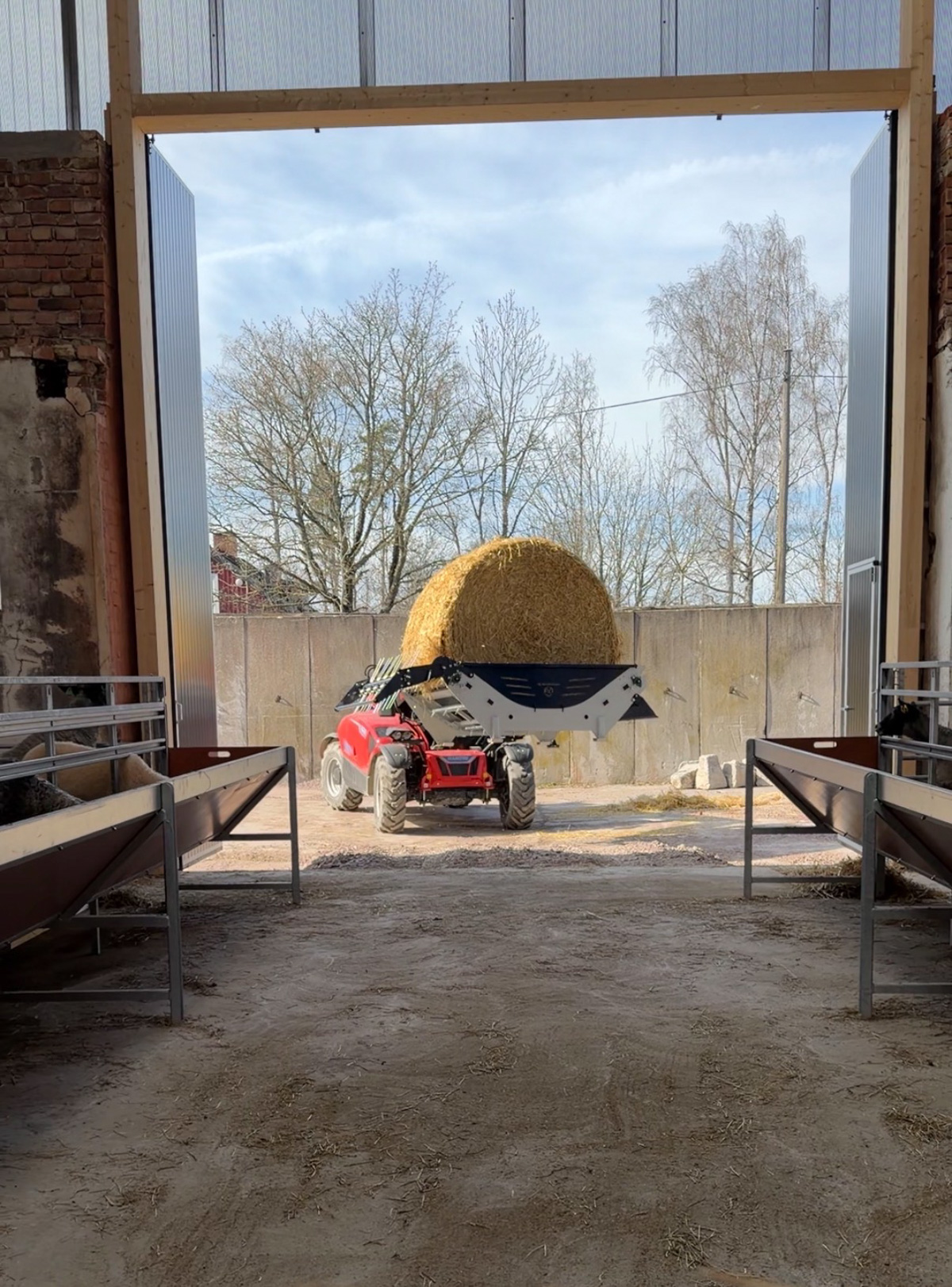

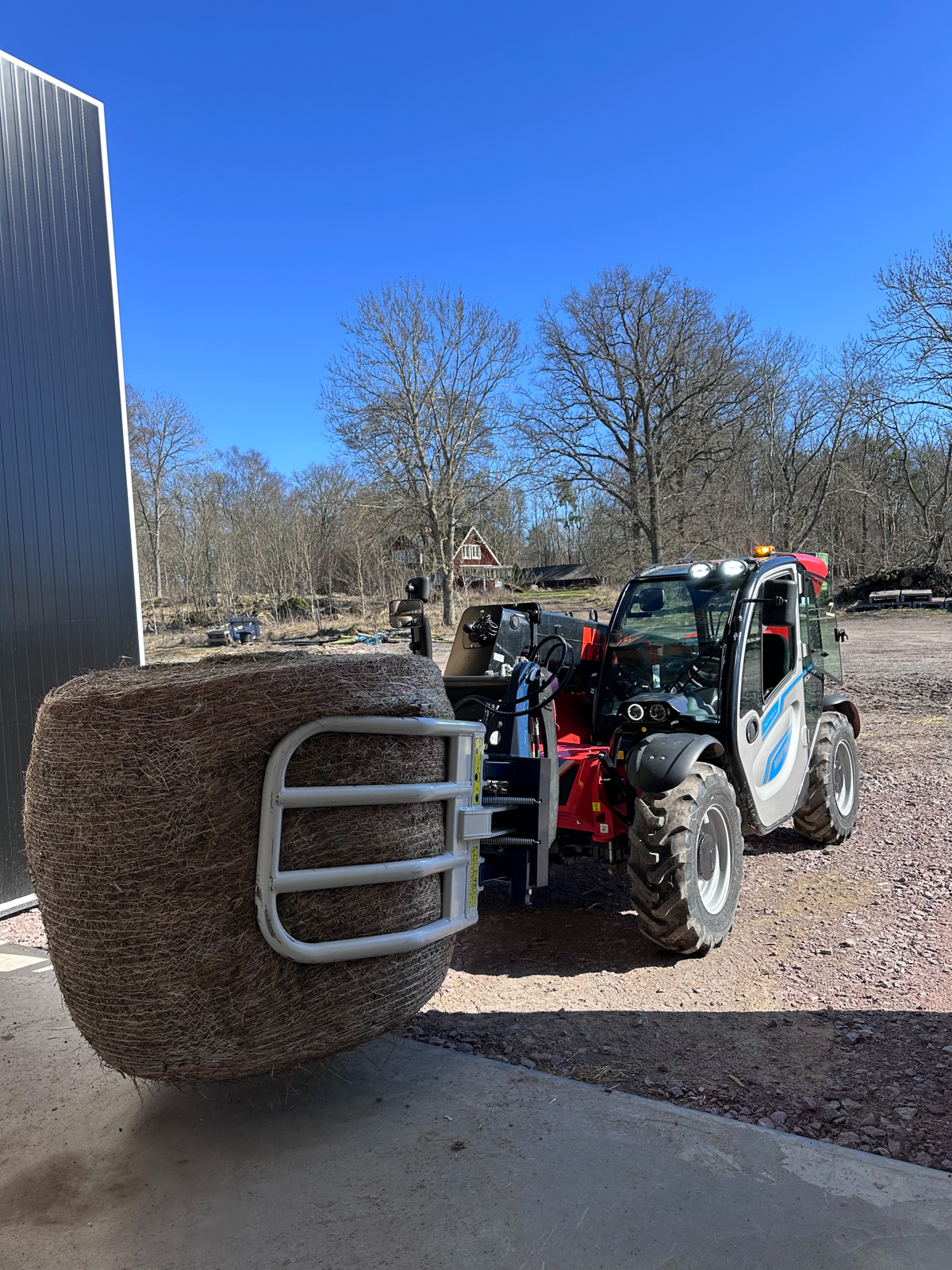

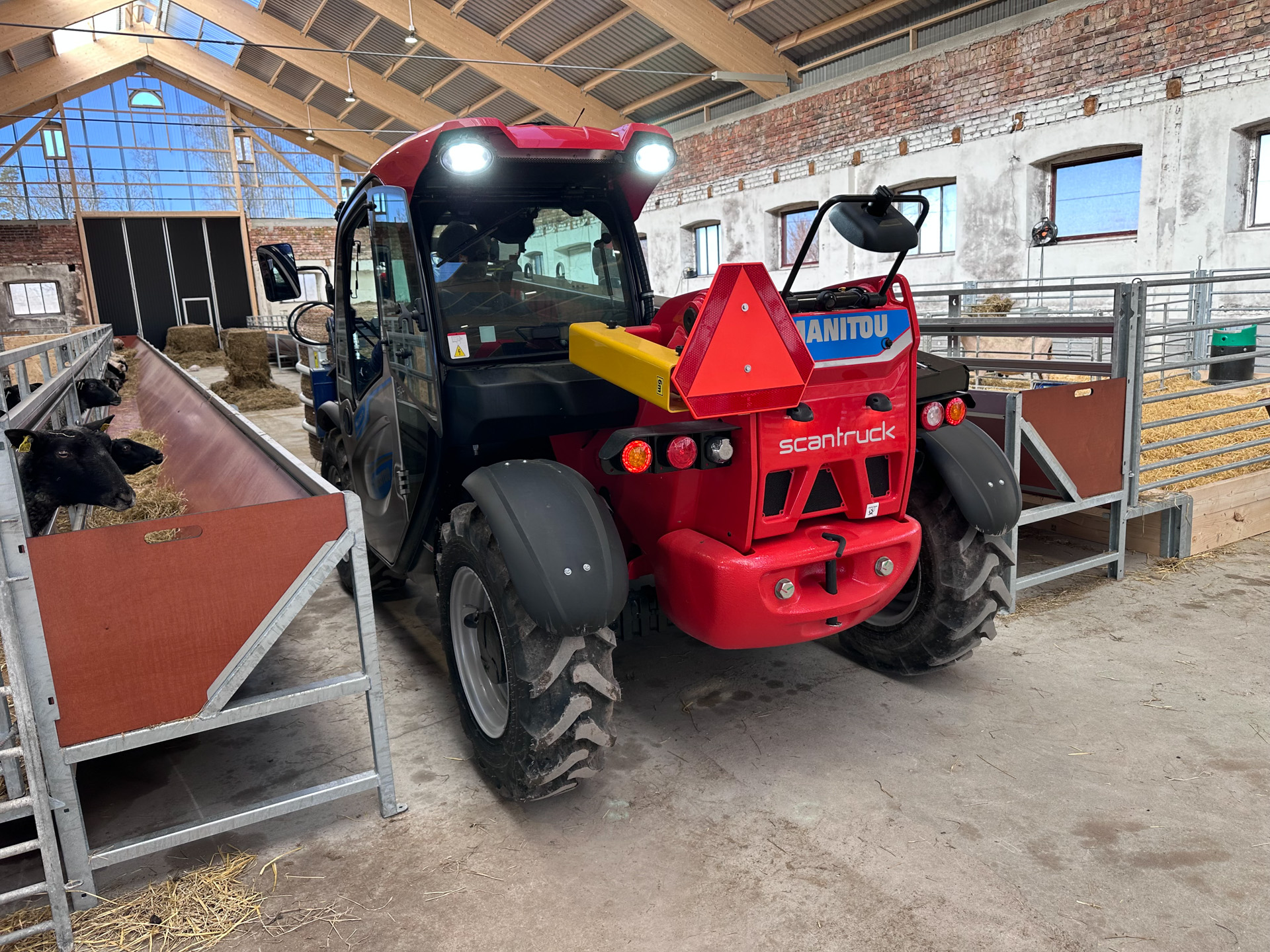

Manitou MLT625E 100V S1

Lifting height (mm)

5,900

Lifting capacity (kg)

2,500

Transmission

Elektrisk - 20 km/t

Power source

Electric

Weight (kg)

4,762

Construction height (mm)

2,000

Length (mm)

3,900

Width (mm)

1,810

Weight (kg)

4,762

Construction height (mm)

2,000

Length (mm)

3,900

Width (mm)

1,810

Lifting height (mm)

5,900

Lifting capacity (kg)

2,500

Boom type

Duplex boom

Steering

4 wheel steering

Cabin

Closed cab with heating
Inner rear view mirror
Air suspension cloth-covered seat (GRAMMER)
Bluetooth USB car radio with integrated microphone (100 W)
Sun visor on windshield
Phone holder

Attached equipment, loading/telescopic arm

Attachment hydraulic locking

Attached equipment, forks

Tilting fork carriage - PFB 25N 1020
Fork 125 x 45 x 1200 mm

Electric equipment

Onboard charger 9kW AC
Three-phase charging cable kit + adapters

Engine / transmission

BOOST mode

Engine / transmission

Speed limiter

Hydraulics

Extra hydraulics

Hydraulics

Continuous flow hydraulics
Deported switch for Easy Connect System (ECS)

Light equipment

Road lights

Light equipment

LED work lights on cab (x4: 2 front + 2 rear)
LED work lights on boom head (on fixed part) (x2)
Flat LED rotating beacon

Backwards equipment

Rear view mirror at the back of the machine

Other equipment

Easy Link

Transmission

Elektrisk - 20 km/t

Engine type

Elektrisk - 40 kW

Wheel front type

Tyres - ALLIANCE - A580 - 300/75 R18 142A8

Wheel rear type

Tyres - ALLIANCE - A580 - 300/75 R18 142A8

Battery other

Battery Lithium-ion 35kWh

Power source

Electric
