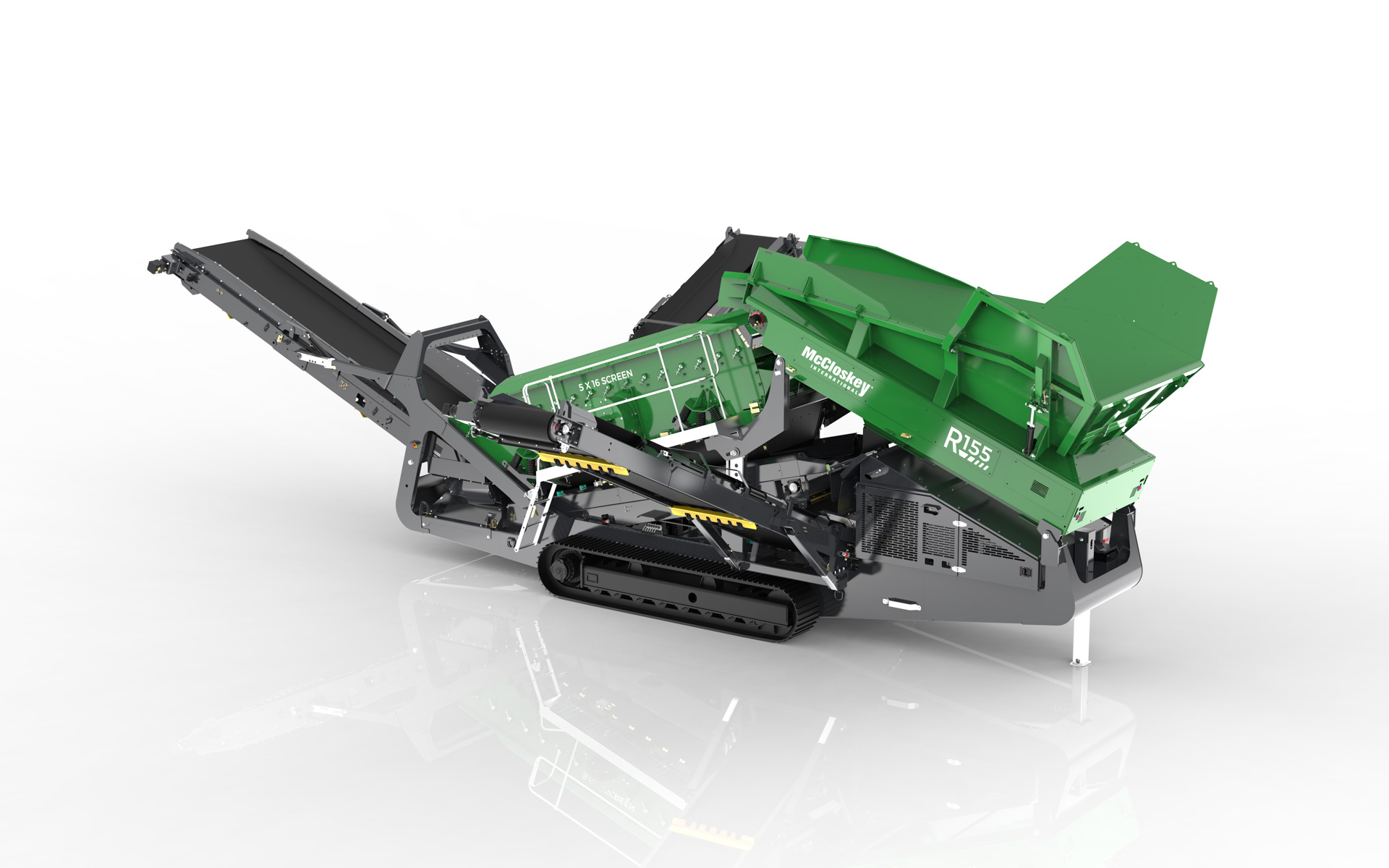

Mccloskey R155

This mobile screener is designed for material separation on demanding sites

McCloskey R155 is a mobile screener built for screening and separating bulk material on site. It suits companies handling aggregate, soil, recycled material, and mixed feed where controlled sizing matters. The machine combines tracked mobility with a two deck screening arrangement. This supports steady material flow across changing work areas.

The machine weighs 32,700 kg. Its transport length is 15,300 mm, width is 2,900 mm, and construction height is 3,400 mm. These dimensions matter when planning transport, access, and setup on site. They also give buyers a clear basis for fleet and project assessment.

The screening setup supports clear material separation across fractions

The feed hopper has extra high sides. This helps contain incoming material during loading and supports a steady feed to the screening process. A track feeder is fitted as part of the configuration. Variable speed and start stop control for the feeder are operated by wireless remote control.

The top deck measures 4,880 x 1,525 mm and is fitted with an 80 mm finger deck. The bottom deck measures 4,575 x 1,525 mm and uses 25 x 25 mm square mesh. This deck setup is relevant where buyers need defined split between larger and finer fractions.

The tail belt is fitted with a riffled belt. The middle and fine fraction conveyors use smooth belts. This combination supports handling of screened material after separation and reflects a setup intended for continuous material processing.

The diesel powertrain is configured for current site requirements

The engine is a Deutz TCD 3.6 Stage V diesel unit. Output is 134 hp or 97 kW. The engine installation includes a diesel particulate filter and SCR with AdBlue. These details are relevant for contractors and processing operators working under current emissions requirements.

The powertrain supports screening work where stable output and compliance are part of machine selection. For buyers comparing mobile screening plants, the Stage V engine specification provides a clear reference point. It also supports planning around fuel handling and service routines.

The tracked undercarriage supports movement across uneven ground

The undercarriage uses steel tracks with 400 mm track shoes. This setup is relevant for sites where the machine must move across uneven or loose ground. It also supports repositioning within the work area without separate transport equipment for every move.

Tracked mobility matters in quarry work, recycling yards, and temporary processing areas. The machine can be aligned with crushers, stockpiles, and loading areas as site flow changes. For companies handling shifting material streams, this improves layout flexibility during production.

Lighting and control details support practical daily operation

Four LED light towers are included. This supports visibility around the machine during early starts, late shifts, or work in darker conditions. Lighting details are important when screening continues beyond daylight hours or where site visibility is limited.

The wireless remote control gives the operator direct access to feeder speed and start stop functions. This helps when adjusting feed rate in relation to incoming material and downstream handling. It also supports control during setup and routine use around the machine.

Overall, this configuration makes the McCloskey R155 relevant for businesses that need a tracked screener with defined deck media, controlled feeding, and clear material separation. The stated engine data, deck dimensions, transport dimensions, and operating weight provide a factual basis for technical evaluation and project matching.
