Platform Basket SPIDER 33.15 STD

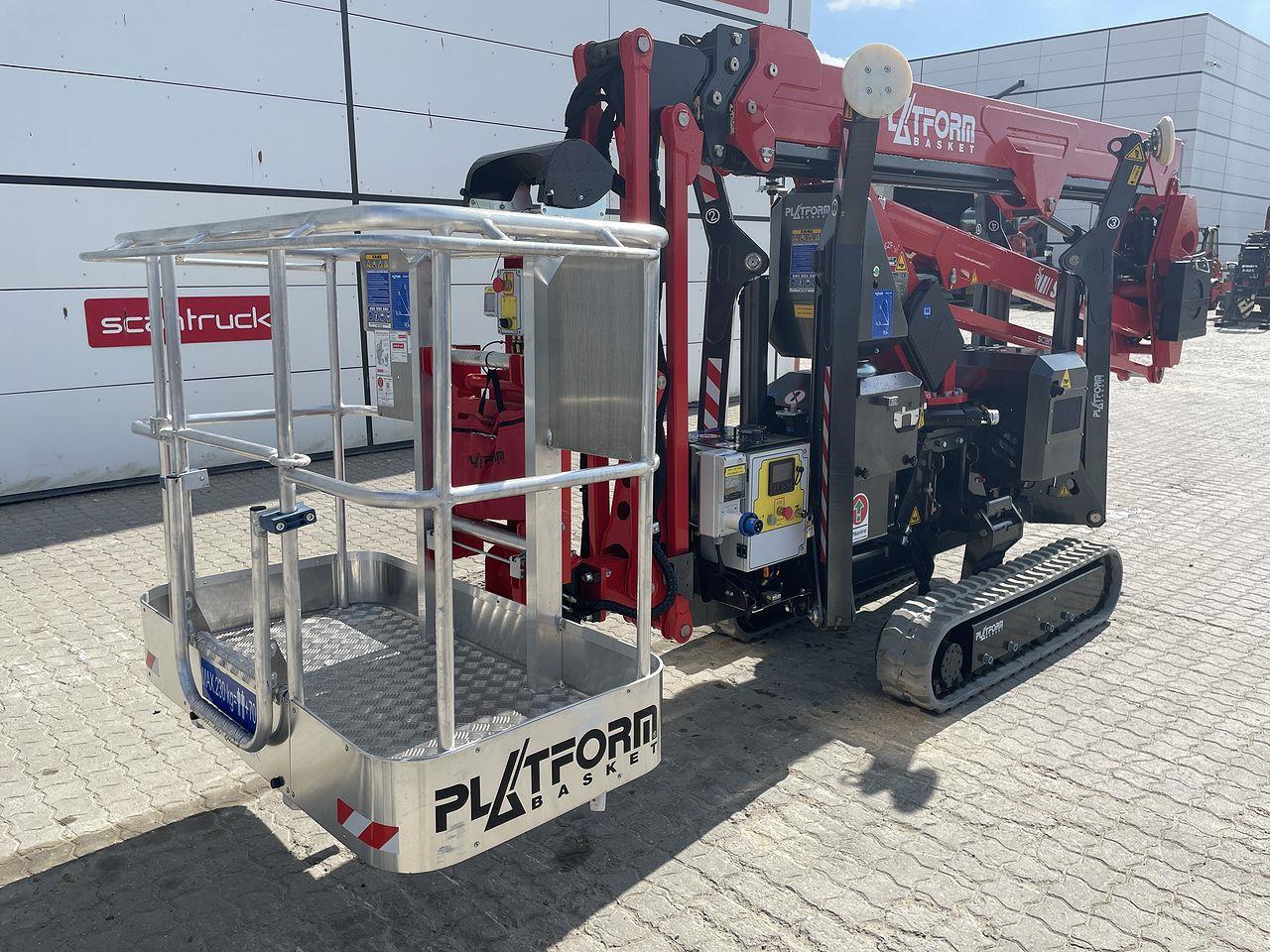

This tracked spider lift supports access where space and reach both matter

This tracked spider lift is built for work at height in areas with limited access. It combines a narrow transport width with a machine layout suited to precise positioning. The overall width is 1,390 mm, and the construction height is 1,390 mm. The transport length is 7,130 mm. These dimensions support entry through narrow passages and movement in confined working areas.

The lifting capacity is 230 kg. This provides a clear basis for planning personnel, tools, and task related equipment in the platform. The machine weight is 6,530 kg. That figure is relevant when assessing ground conditions, transport planning, and site access.

The undercarriage layout supports stable setup on varied ground

The machine uses four stabilizers with automatic leveling. This setup helps establish a level working position before lifting begins. Automatic leveling is relevant on sites where ground conditions change between positions. It also supports repeatable setup when the lift is moved across the same work area.

A variable undercarriage is included. This allows the machine footprint to be adapted to the available access and working conditions. For companies working near buildings, plant installations, or restricted service areas, this layout supports better use of the available space.

Skid steering is part of the drive arrangement. This steering format supports controlled movement where turning space is limited. Combined with the tracked undercarriage, it is relevant for work on surfaces where traction and low ground disturbance matter.

The drive system is configured for controlled movement and site handling

The machine uses a Kubota Z902 diesel engine. Power is transferred through a hydrostatic transmission. This combination is well suited to low speed travel and controlled positioning on site. It supports movement between setup points without relying on external towing equipment.

An optional electric power pack for 380 to 410 Vac and 3 phase supply is available. This provides an alternative power source for applications where site power is preferred. It is relevant for companies assessing fuel use, indoor restrictions, or project specific power requirements.

The platform equipment supports recurring service and installation work

The platform includes a 230 V power supply. This supports the use of electrical tools directly in the basket during service, installation, and maintenance work. Power in the platform reduces the need for separate cable handling from ground level.

Air and water outlets are also routed into the basket. These connections are relevant for tasks that require cleaning, testing, or the use of pneumatic tools. For technical service work, this can simplify workflow by placing key utilities at the working position.

Radio remote control is included. This supports machine setup and repositioning with direct visibility around the work area. In practical use, remote control can assist the operator when aligning the machine with stabilizer points and access routes.

The machine layout is relevant for companies planning regular work at height

This machine is suited to maintenance, facade work, building services, installation, and inspection tasks. The narrow transport dimensions support access through restricted entry points. The stabilizer system and variable undercarriage support setup where working space changes from one location to the next.

Optional non marking tracks are available in place of the standard tracks. Larger foot pads measuring 85 x 34 cm with recovery frame are also available. These options are relevant when site conditions, surface protection, or load distribution need to be assessed before purchase.

For companies comparing spider lifts for access, handling, and site flexibility, the stated weight, dimensions, capacity, and platform services provide a clear basis for evaluation.
