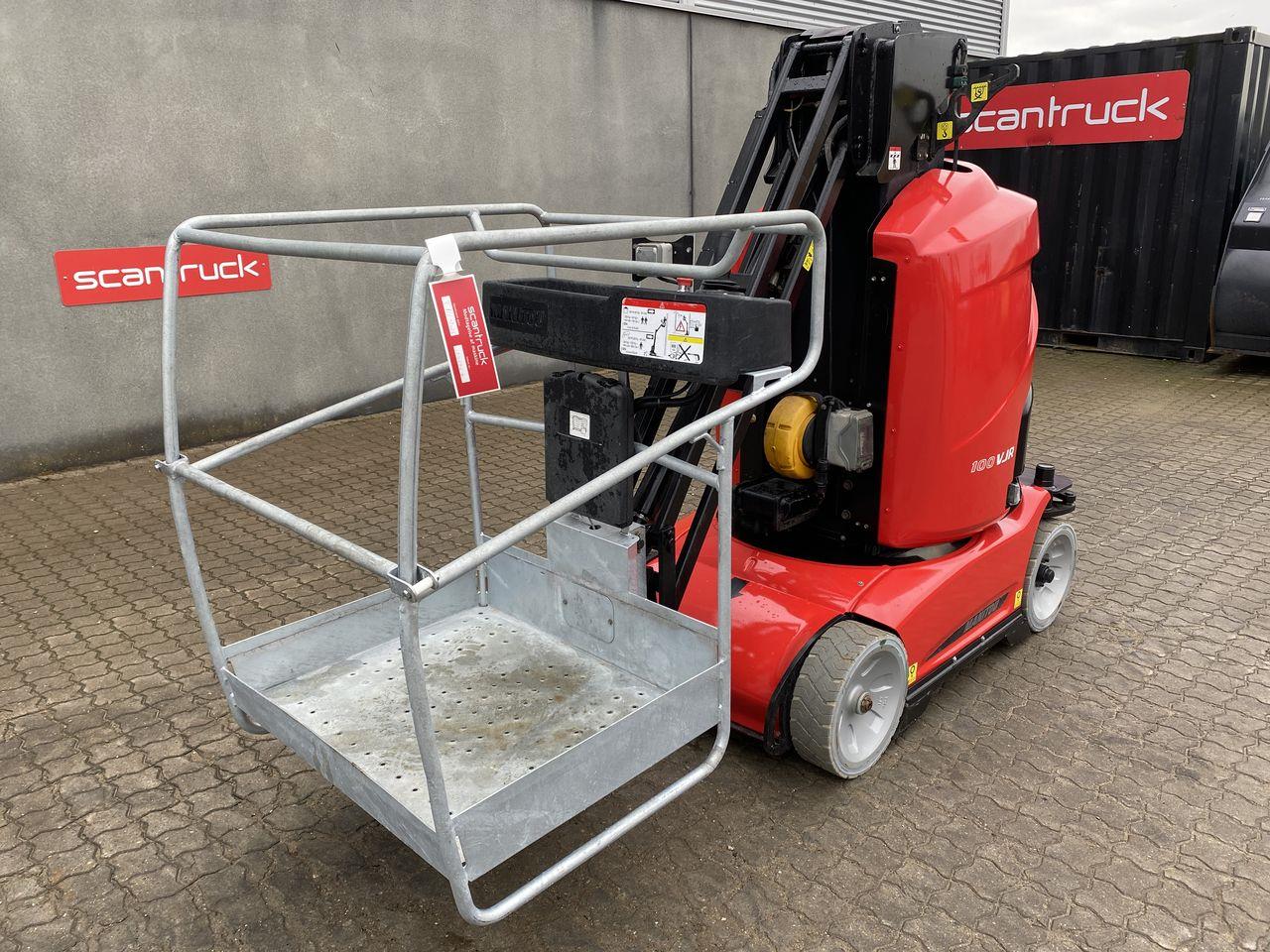

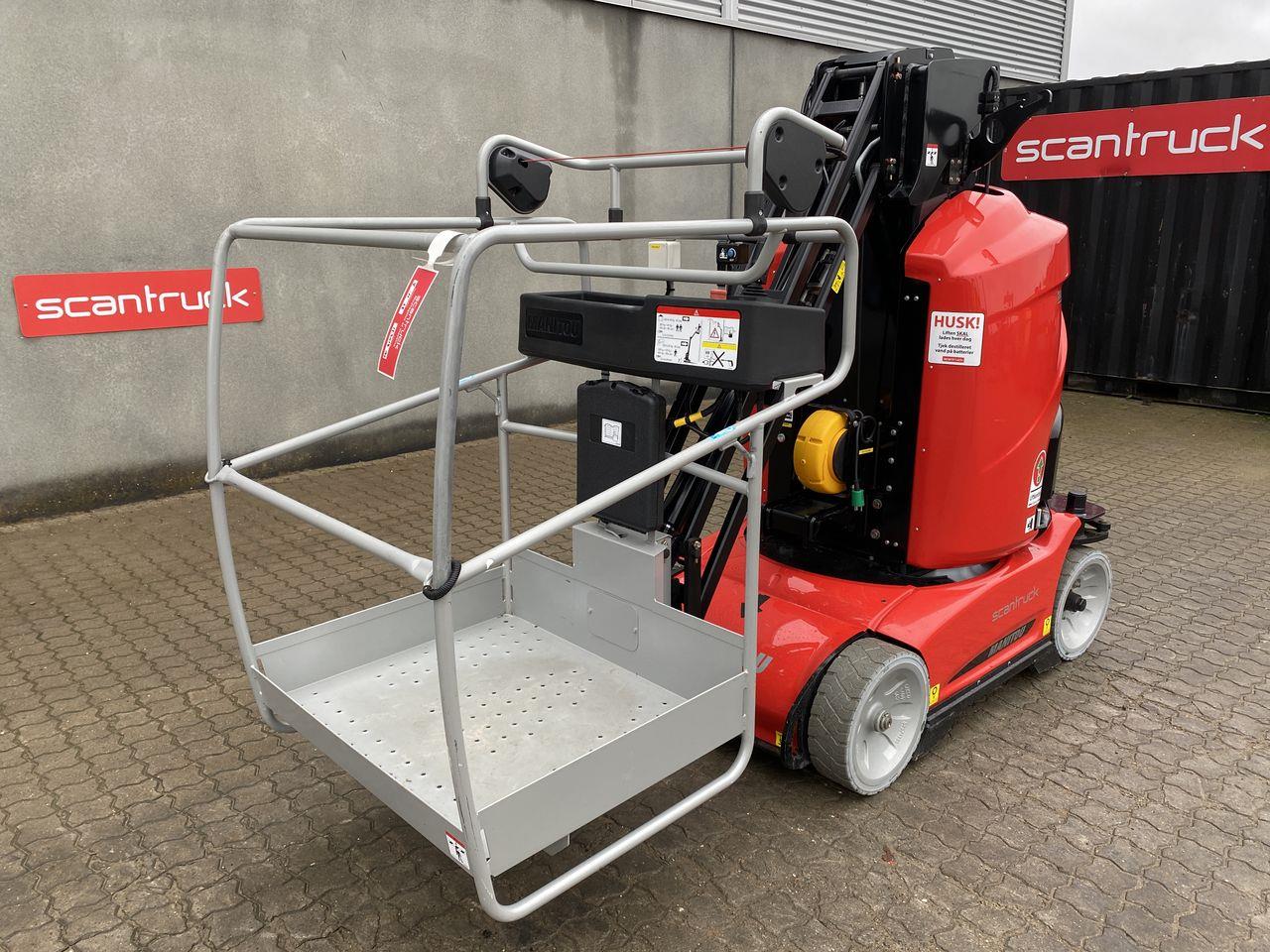

Manitou 80VJR 24V

Working height (mm)

7,650

Platform height (mm)

5,650

Outlay (mm)

3,240

Lifting capacity (kg)

200

Battery (V/Ah)

24/250

Platform width (mm)

930

Platform length (mm)

1,110

Rotation chassis (degrees)

350

Weight (kg)

2,250

Construction height (mm)

1,990

Length (mm)

2,950

Width (mm)

990

Lifting capacity (kg)

200

Electric equipment

Pre fitting electric supply IP65

Security

Secondary Protection System (SPS) with red flashing light

Other equipment

Easy link Painted basket 900 mm (2 ft 11 in.) with lateral door

Wheel front type

Tires - 406x127 mm (16x5 in.) - Non-marking rubber

Wheel rear type

Tires - 406x127 mm (16x5 in.) - Non-marking rubber

Battery (V)

lead battery EXIDE/GNB 24V - 250Ah

Battery (Ah)

250

Platform height (mm)

5,650

Outlay (mm)

3,240

Rotation chassis (degrees)

350

Platform width (mm)

930

Platform length (mm)

1,110

Wheelbase (mm)

1,200

Free height (mm)

90

Driving speed (km/h)

4,50/0,65

Gradeability (%)

25

Permissible leveling (degrees)

2

Working height (mm)

7,650

Battery other

Built-in charger

Battery (V/Ah)

24/250
