Manitou MLT635-140V+ ELITE ST5
Show more photos
Info about the machine
- Specifications
- More specifications
- Downloads
Lifting height (mm)
6,080
Lifting capacity (kg)
3,500
Transmission
CVT 0-40 km/h
Power source
Diesel
Weight (kg)
7,600
Construction height (mm)
2,380
Length (mm)
4,660
Width (mm)
2,390
This telehandler supports loading and material handling on busy work sites

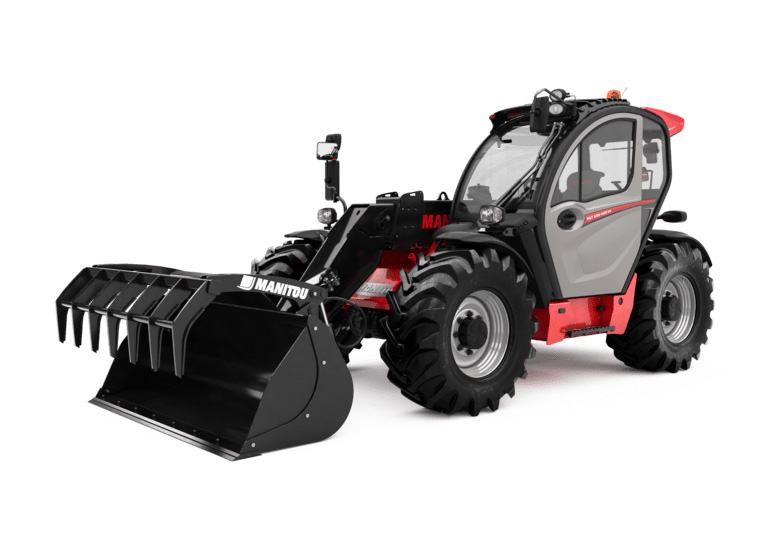

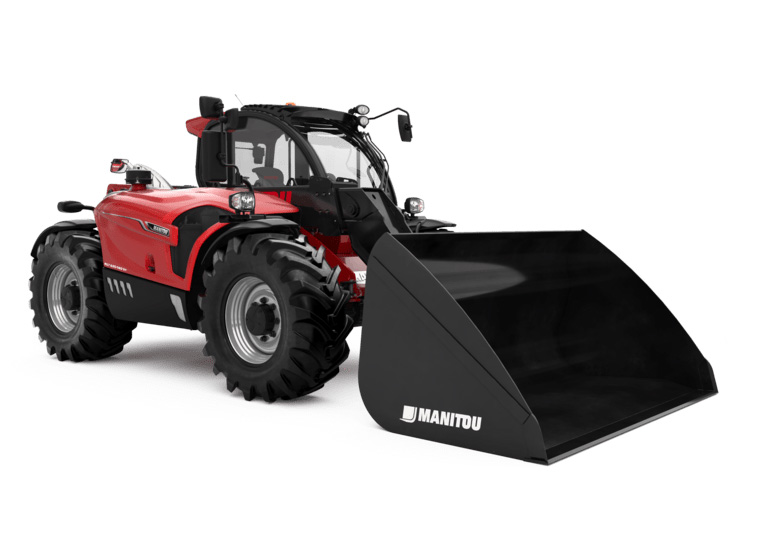

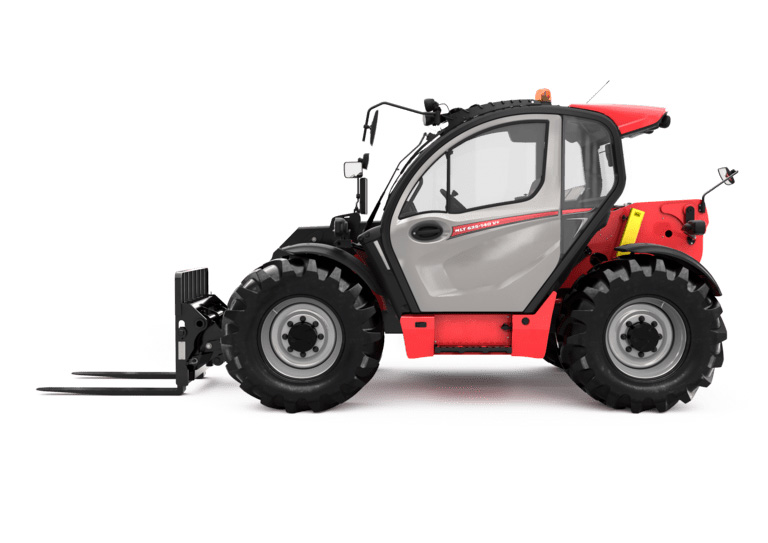

Manitou MLT635-140V+ ELITE ST5 is a telehandler built for lifting, loading and material handling. It has a lifting capacity of 3,500 kg and a lifting height of 6,080 mm. These values suit daily work with palletised goods, bulk materials and attachments. The machine weighs 7,600 kg and combines compact dimensions with useful reach from its duplex boom.
The machine is 4,660 mm long, 2,390 mm wide and 2,380 mm high. These dimensions matter where access routes, storage buildings and yard areas set clear limits. For companies working in agriculture, construction and general site logistics, the format supports regular movement between loading points and work zones.
The boom and hydraulics support controlled handling of loads
The duplex boom gives a clear basis for lifting and placing materials at height. Regenerative hydraulics support boom functions during repeated loading cycles. The boom suspension system called Active CRC helps manage machine movement when travelling with a load. This is relevant on uneven surfaces where load stability and machine control affect handling speed.
Attachment hydraulic locking supports quick attachment changes during the working day. This is useful where the telehandler moves between fork work and other handling tasks. The tilting fork carriage PFB 35N/1260 and the 125 x 45 x 1200 forks provide a clear setup for pallet and load handling. The fork carriage tilt function supports accurate placement during loading and stacking.
The steering layout is relevant where turning space is limited
Four wheel steering supports movement in confined areas where larger turning circles reduce efficiency. This matters in farm buildings, yards, storage areas and active construction sites. The steering arrangement helps the operator position the machine near trailers, stacks and loading bays with fewer correction movements.
The automatic parking brake adds a practical safety function during routine stops and loading work. This is relevant where the machine works across many short handling tasks in one shift. A reversible fan is included, which supports engine cooling management in dusty conditions.

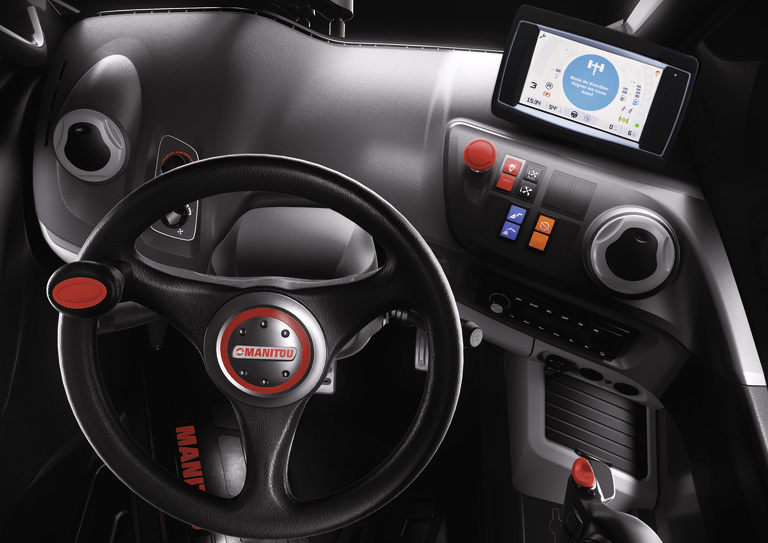

The cab configuration supports long working days with clear machine control
The cab includes heating and air conditioning with automatic adjustment. The door has an electric side window, and the electric mirror includes de icing. These details support visibility and working conditions across changing weather during the year.

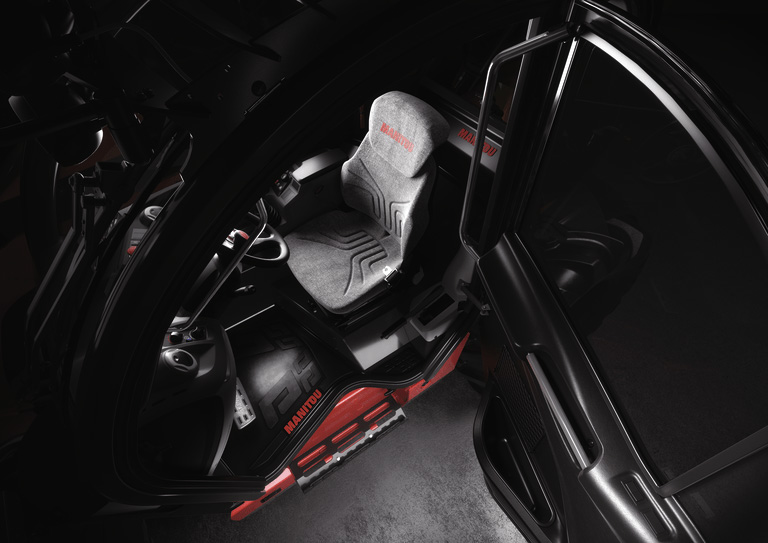

The Grammer cloth seat uses low frequency air suspension. The control layout includes JSM Autopower joystick operation. This setup supports direct control during repeated lifting and loading tasks. A Bluetooth USB car radio with extra microphone and 100 W output is also included.
The machine includes equipment that supports visibility and emissions control
The SafeView camera pack includes two cameras, placed at the rear and on the right hand side. This supports visibility around the machine during reversing and manoeuvring near other equipment. For sites with frequent traffic or narrow working lanes, this equipment provides useful visual support.
The engine system includes DOC, DPF and SCR with AdBlue. These components form part of the emissions aftertreatment setup. For fleet buyers, this information supports planning around site requirements, maintenance routines and operating conditions. Overall, the stated capacity, lift height, dimensions and cab equipment give a clear basis for assessing this telehandler for daily handling work.
