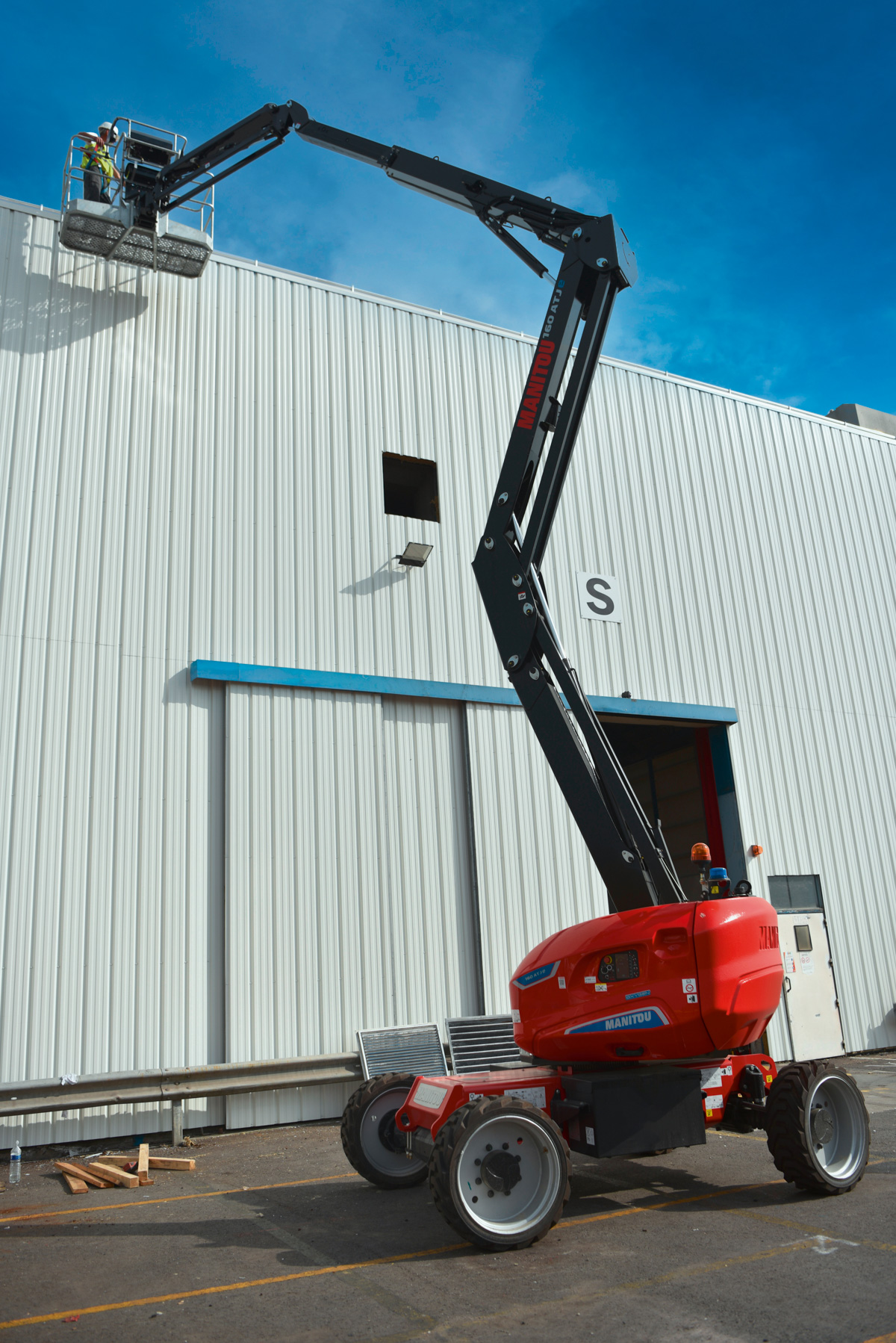

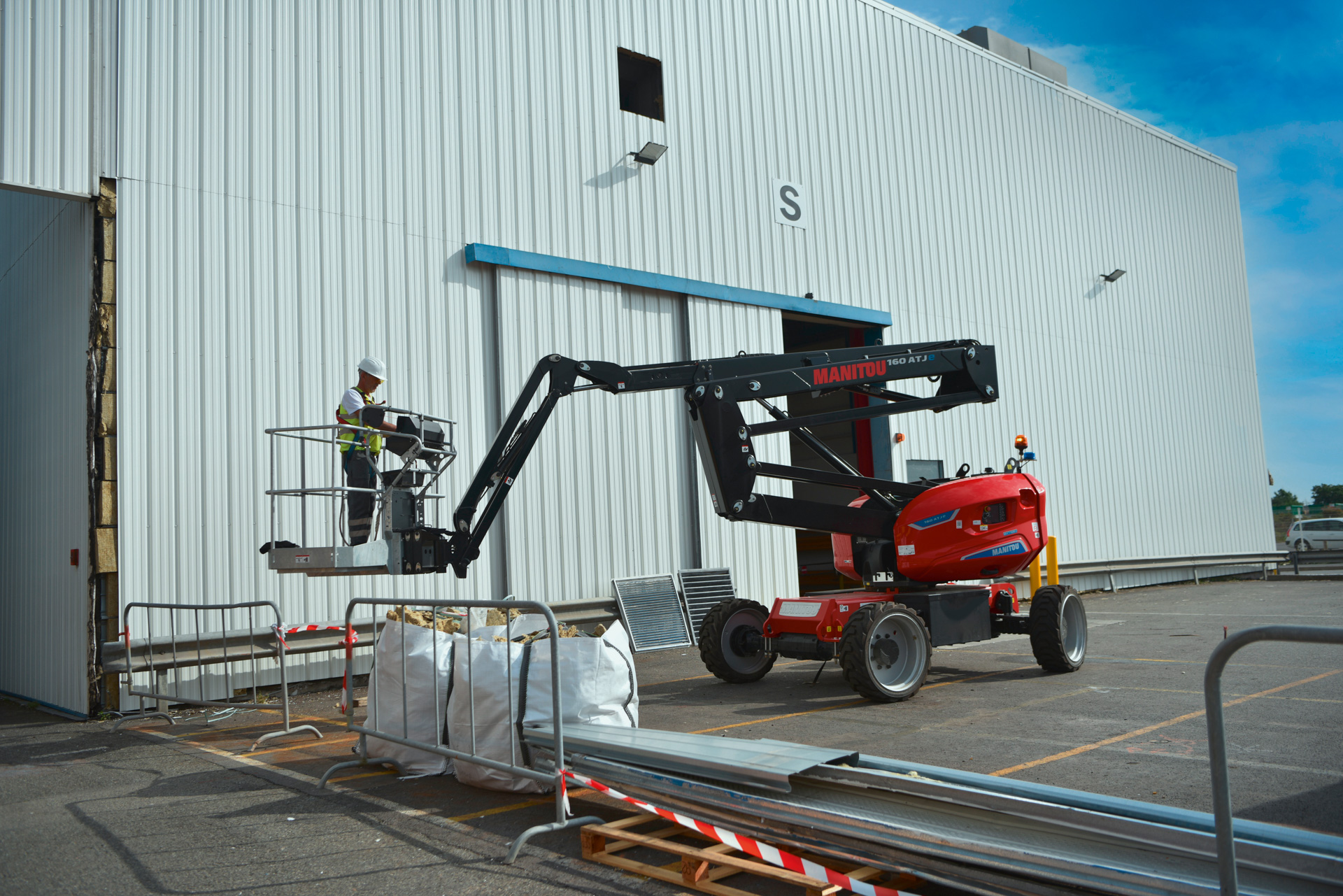

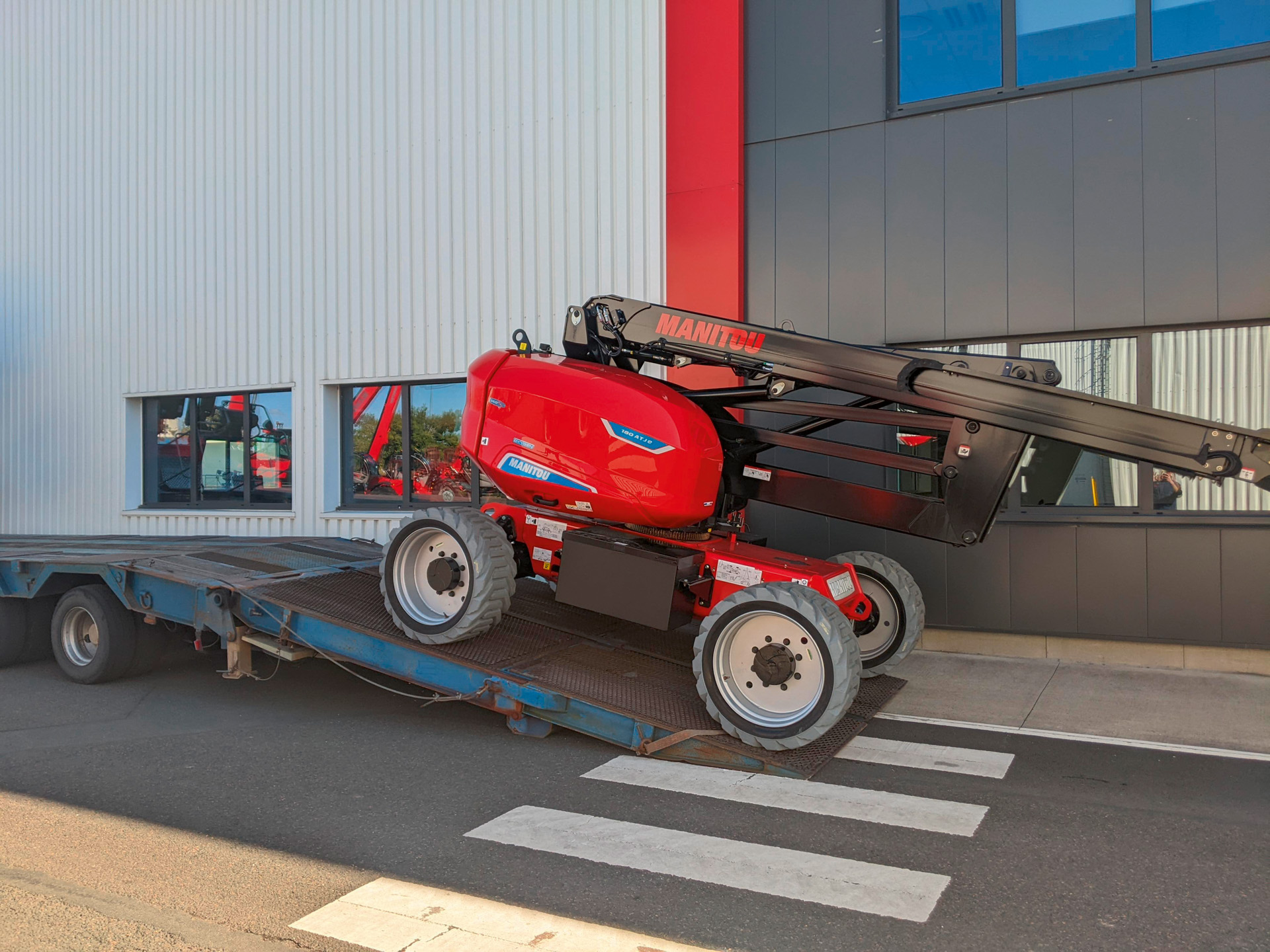

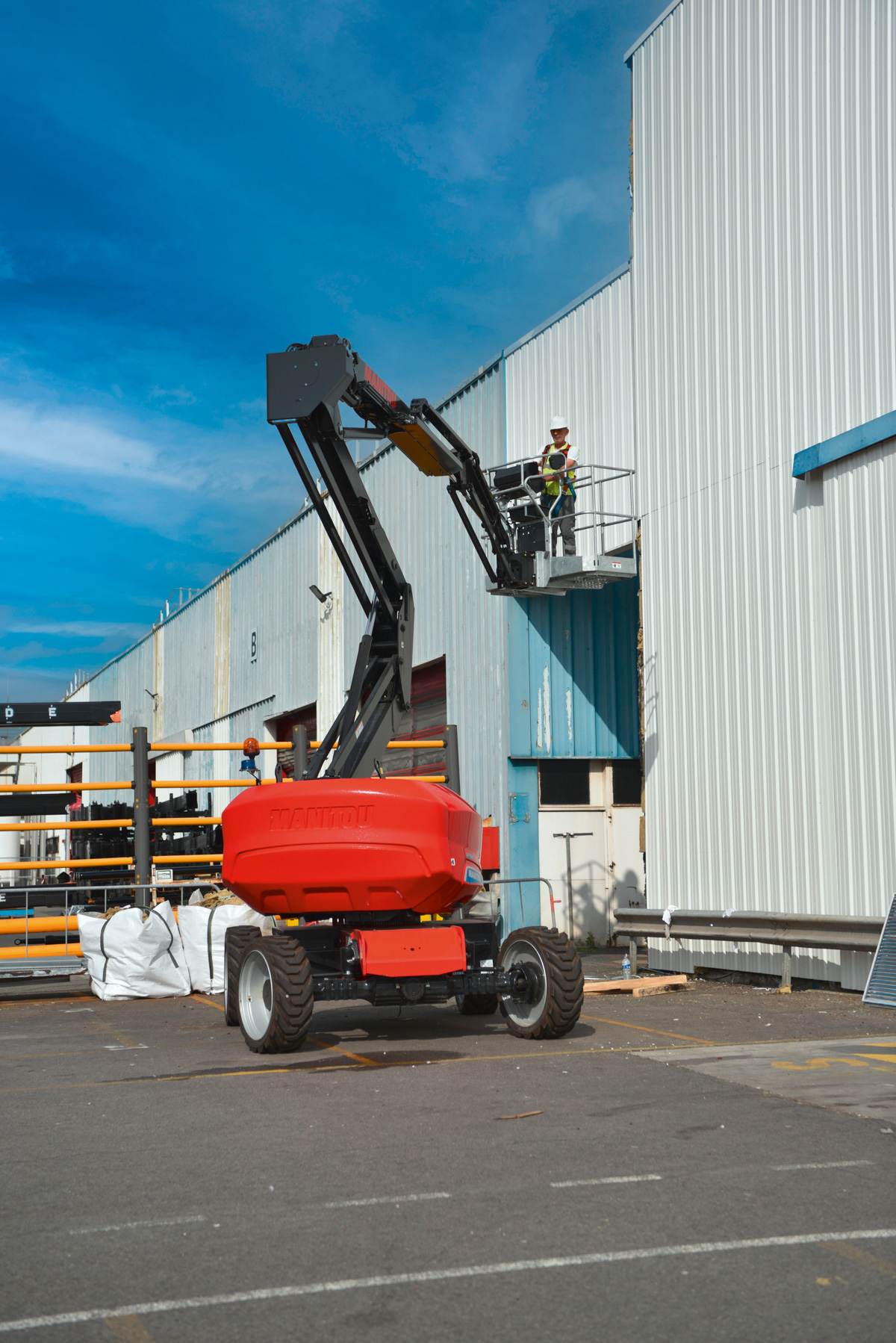

Manitou 160ATJ E RC

Working height (mm)

16,030

Platform height (mm)

14,030

Outlay (mm)

8,110

Lifting capacity (kg)

250

Power source

Electric

Platform width (mm)

800

Platform length (mm)

1,800

Rotation chassis (degrees)

360

Weight (kg)

6,220

Construction height (mm)

2,390

Length (mm)

6,500

Width (mm)

2,320

Lifting capacity (kg)

250

Steering

4 wheel steering

Electric equipment

230V til kurv

Wheel / undercarriage

Oscillating axle

Light equipment

Rotating beacon

Security

Secondary Protection System (SPS) med rød lygte

Other equipment

Easy Manager - Trackunit
Kurv 2100mm bred - med dør

Wheel front type

Massive afsmitningsfrie hjul - str. 910x370mm

Wheel rear type

Massive afsmitningsfrie hjul - str. 910x370mm

Battery (V)

Batteri 48V/480AH (EXIDE) med aut. vandpåfyldning

Platform height (mm)

14,030

Outlay (mm)

8,110

Rotation chassis (degrees)

360

Rotation basket (degrees)

180

Platform width (mm)

800

Platform length (mm)

1,800

Wheelbase (mm)

2,300

Driving speed (km/h)

5

Gradeability (%)

45

Permissible leveling (degrees)

5

Working height (mm)

16,030

Power source

Electric

Brochure

ATJE_Range.pdf

Datablad

160ATJe_datablad.pdf
