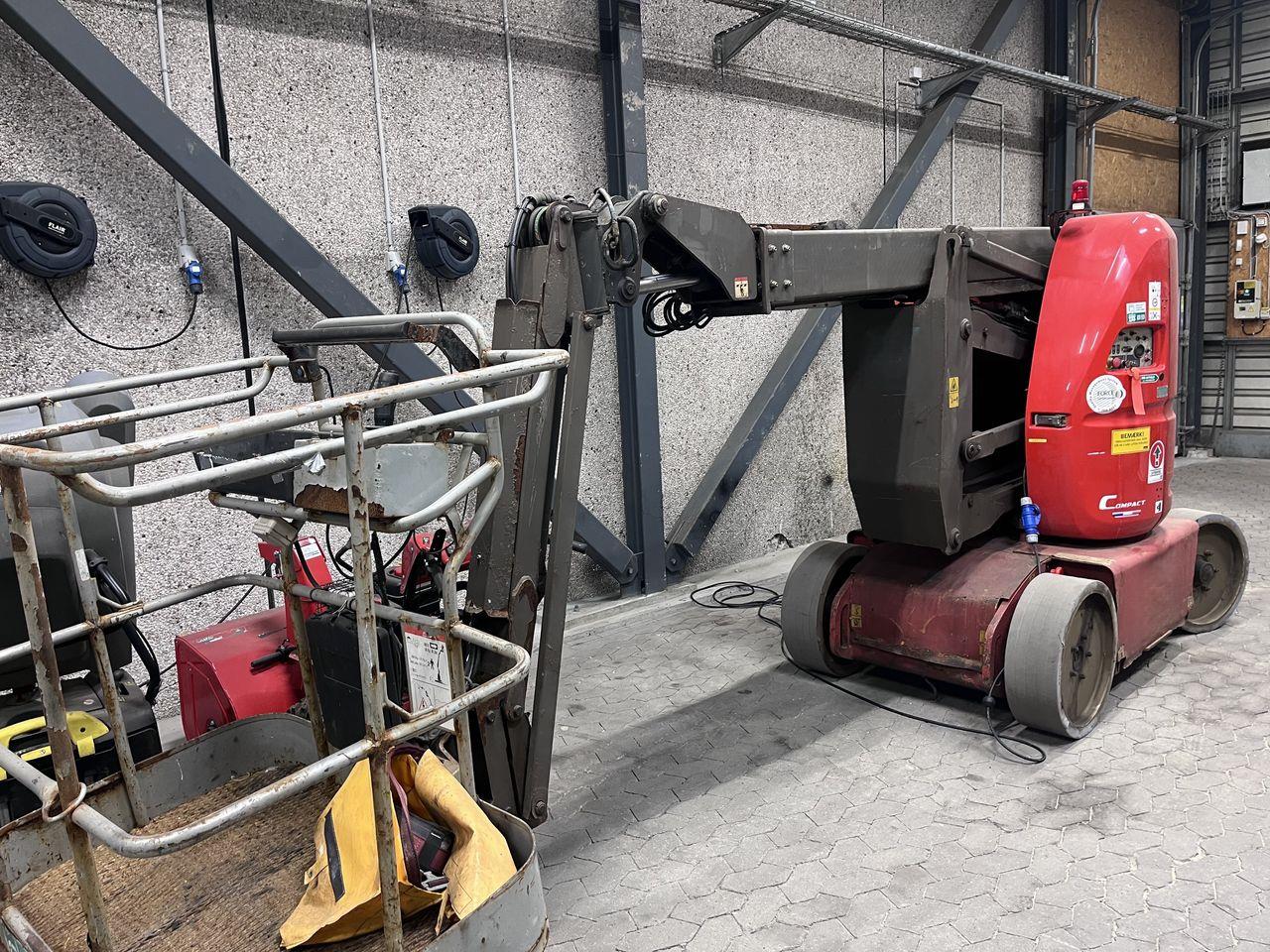

Manitou 200ATJE 4WS

Working height (mm)

20,000

Platform height (mm)

18,000

Outlay (mm)

11,570

Lifting capacity (kg)

250

Rotation chassis (degrees)

350

Weight (kg)

7,530

Construction height (mm)

2,460

Length (mm)

8,340

Width (mm)

2,380

Lifting capacity (kg)

250

Steering

4 wheel steering

Electric equipment

230 V European type electric plug with differential circuit breaker

Wheel / undercarriage

Oscillating axle

Light equipment

Rotating beacon

Security

Secondary Protection System (SPS) with red flashing light

Other equipment

Easy link Galvanized basket 2.10 m with lateral door

Wheel front type

Non-marking foam filled tyres 910 x 370 mm / 36X15D610

Wheel rear type

Non-marking foam filled tyres 910 x 370 mm / 36X15D610

Battery (V)

lead battery EXIDE/GNB with centralised filling 48V/460AH

Platform height (mm)

18,000

Outlay (mm)

11,570

Outlay height (mm)

7,900

Rotation chassis (degrees)

350

Rotation basket (degrees)

180

Tilt jib (degrees)

125

Wheelbase (mm)

2,300

Free height (mm)

380

Driving speed (km/h)

5,3/0,7

Gradeability (%)

45

Permissible leveling (degrees)

4

Working height (mm)

20,000

Brochure

200 ATJe 4WS_datablad.pdf

Brochure

ATJE_Range.pdf
